TinyPilot Pathfinder

TinyPilot Pathfinder

TPPTHFNDR

Plug-and-play LTE failover that keeps your TinyPilot reachable when the onsite network fails.

  • Provided by OptConnect.
  • Tested with Tailscale.

Only ships to US. Requires service from OptConnect, plans start at $13/mo.

$199.00

Shipping calculated at checkout.
View full details

Stay reachable when the site network fails

Keep access to your TinyPilot when a bad switch config, firewall change, or other onsite network failure takes down your usual path. Pathfinder fails over to LTE so you can still reach the console and fix what broke.

Plug-and-play cellular, provided by OptConnect

Order Pathfinder from TinyPilot. OptConnect ships the cellular router and handles activation, data, and ongoing cellular service, so you get LTE failover without managing carriers yourself.

Finds a path with Zero Trust overlays

When paired with a Zero Trust overlay like Tailscale, Pathfinder finds a path to keep you connected to your TinyPilot even when the onsite network is down.

Share failover across multiple TinyPilots

Connect your first TinyPilot over Ethernet, then join additional TinyPilots to Pathfinder’s Wi-Fi access point. A second or third TinyPilot can use the same cellular failover path without a second Pathfinder.

Automatic failover between wired and LTE

Use the site network when it’s healthy. When that path fails, Pathfinder switches to cellular automatically, so break-glass access doesn’t depend on someone manually changing cables or SIMs.

Built for TinyPilot out-of-band access

Pathfinder is for keeping TinyPilot reachable, not for backing up site internet for the whole office. Deploy it as the out-of-band path so you can recover the network you just broke.

Specifications

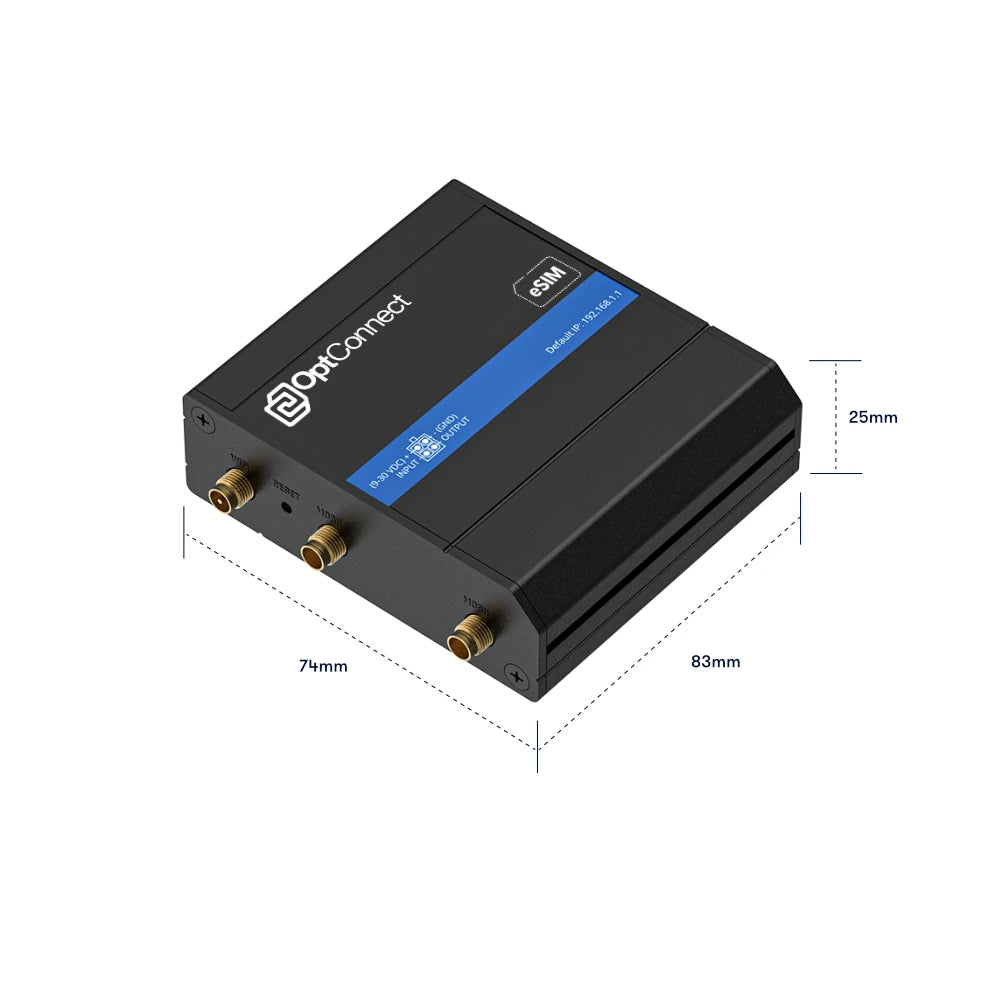

Dimensions 83mm x 25mm x 74mm
Weight 125 g
Housing Aluminum housing
Cellular 4G LTE Cat 4 with 3G/2G fallback
SIM Dual-SIM with eSIM capability (up to 7 eSIM profiles via OptConnect Lattigo)

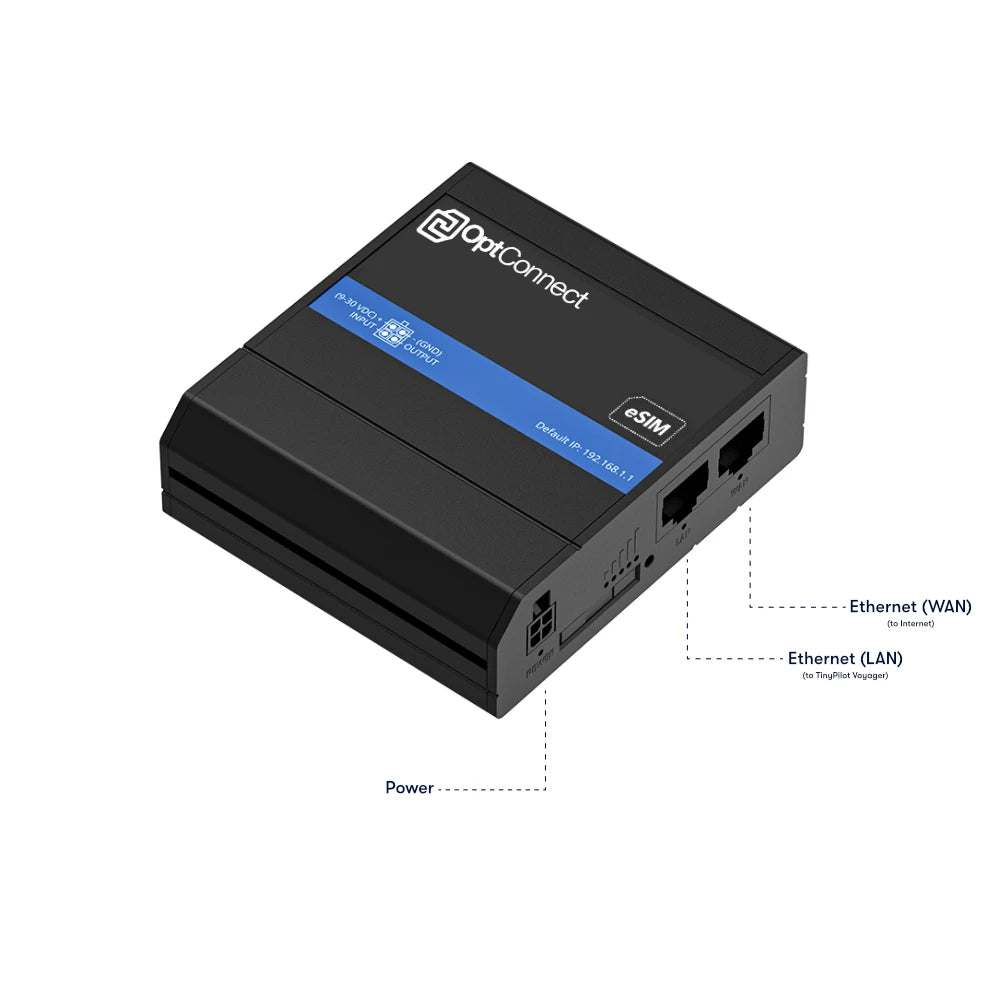

Ethernet 2 x Ethernet ports (1 x WAN, 1 x LAN)
Failover Automatic WAN failover (wired, cellular, and Wi-Fi)
Wireless Wi-Fi access point with Hotspot functionality*
Management Semi-managed by OptConnect via Lattigo
Operating temperature -40°C to +75°C
Availability North America

* Wi-Fi is not recommended as a primary connection method for TinyPilot Pathfinder.

Requirements
TinyPilot A TinyPilot device connected to Pathfinder’s LAN port
Network connection An Ethernet cable from Pathfinder’s WAN port to your site network
Cellular service OptConnect cellular plan (activated and billed by OptConnect)
In the box
Pathfinder device OptConnect fuse one™
Ethernet cable 1.5m Ethernet cable

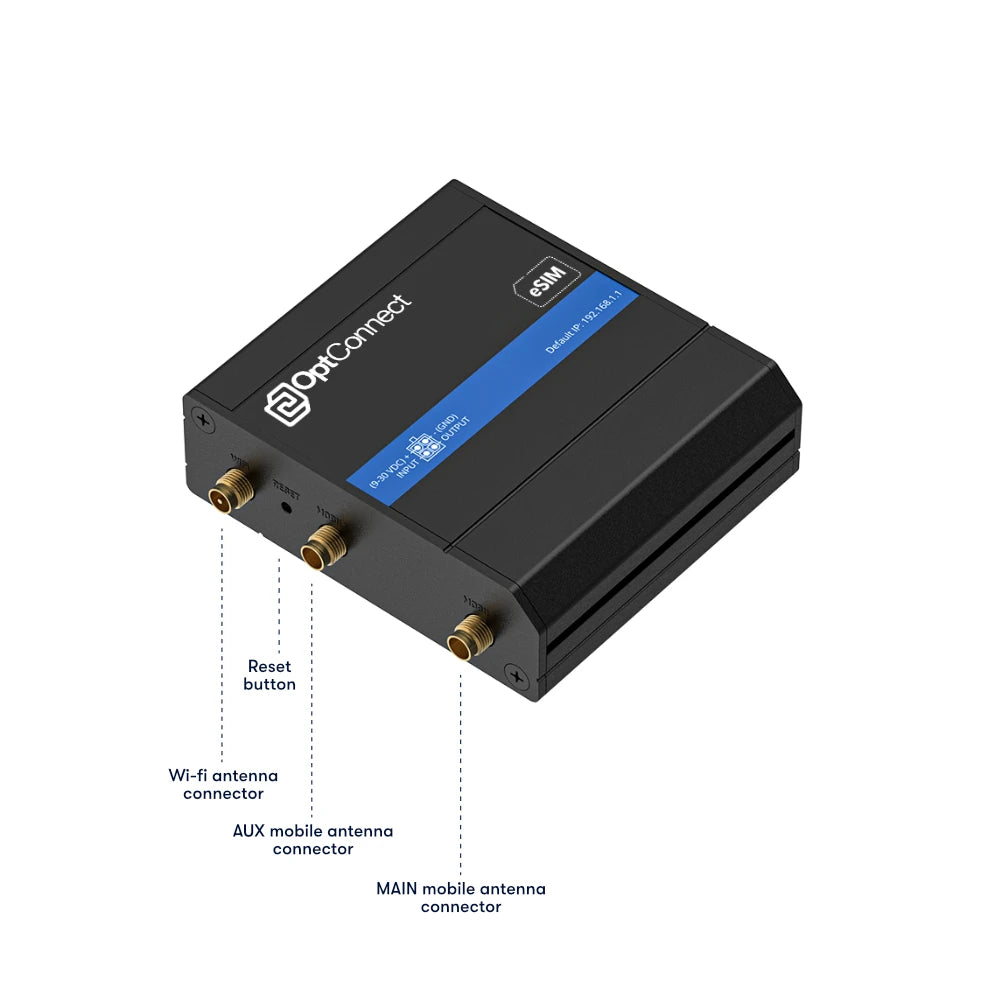

Wi-fi antenna 2.4GHz button antenna
LTE antenna Gemini antenna (magnetic mount)
Power adapter AC power supply
