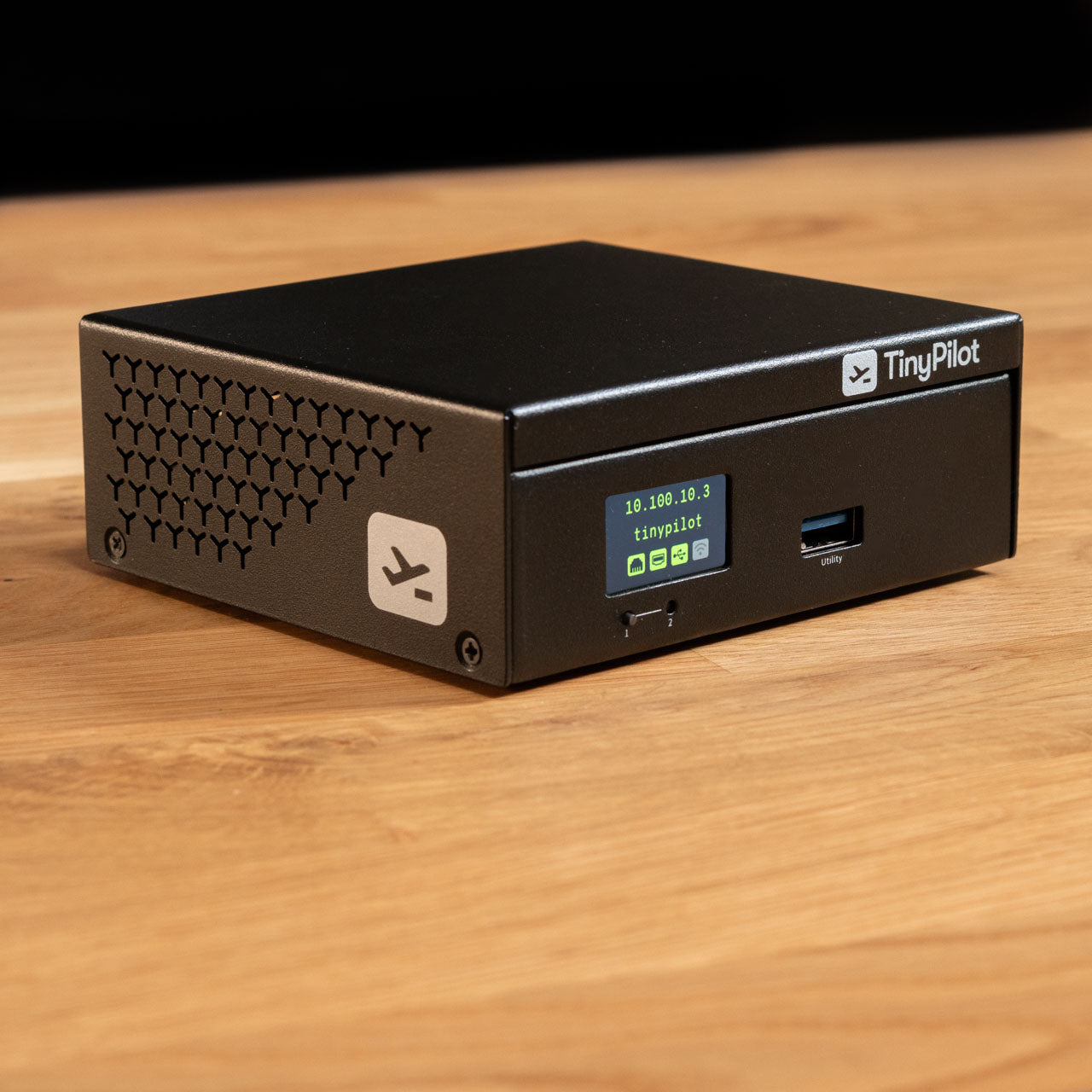

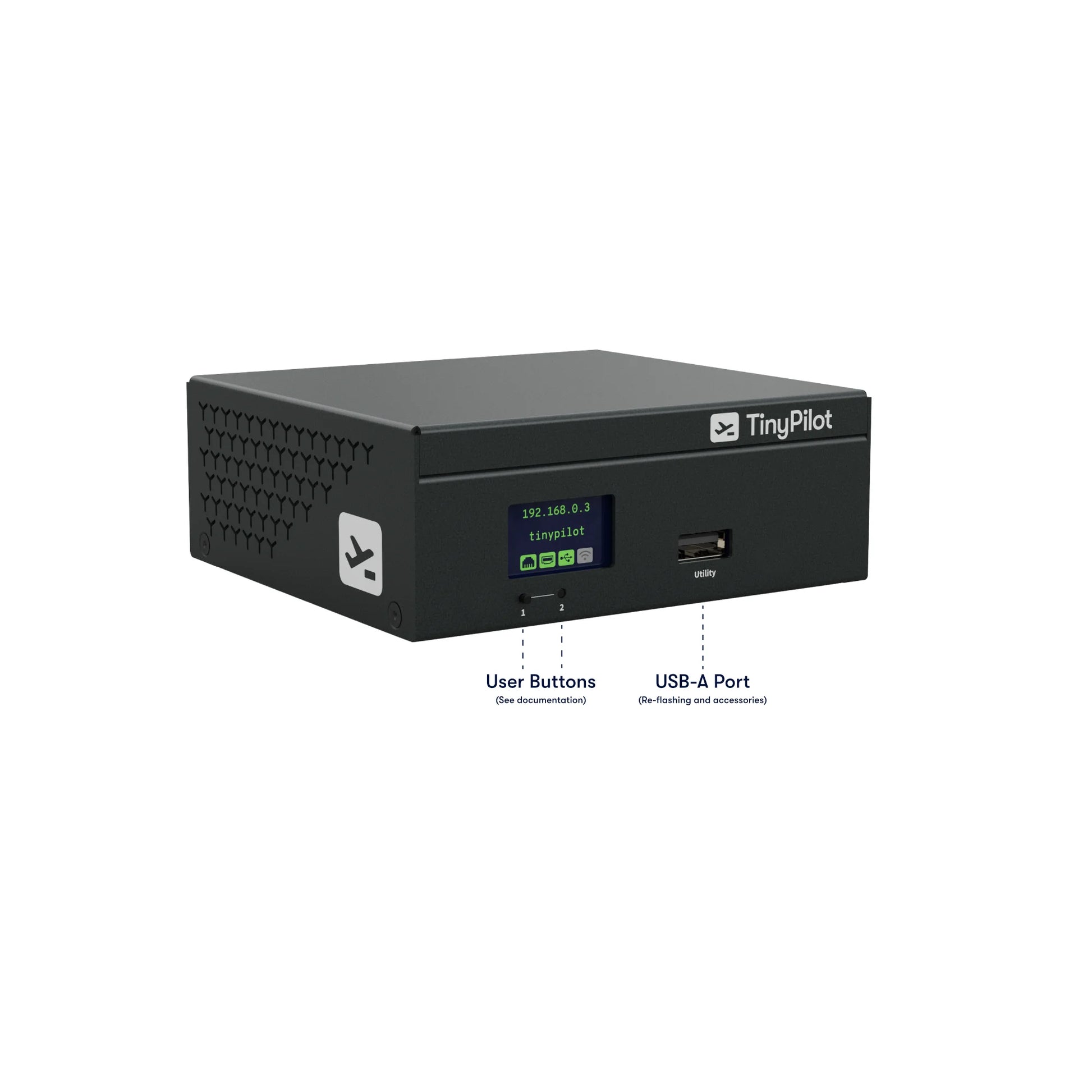

TinyPilot Voyager 3 KVM over IP & Console Server

TinyPilot Voyager 3 KVM over IP & Console Server

TPVOYG3STD

Model

$379.00

Shipping calculated at checkout.
View full details

Recover access when normal tools fail

Use TinyPilot to reach systems at the hardware layer when your OS won’t boot, your network breaks, or your usual remote access tools stop working.

No software to install

Run TinyPilot without installing software on the target system or client software on the operator’s machine. Open a browser and connect.

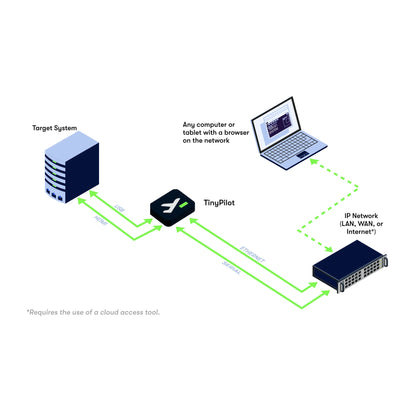

KVM over IP + console server in one device

Standardize remote recovery with browser-based KVM over IP and built-in serial console access in a single device.

Mount virtual media for installs and recovery

Use virtual media to install operating systems, transfer files, and handle provisioning workflows without sending someone onsite.

Secure remote access without open inbound ports

Deploy TinyPilot on your LAN, over VPN, or through modern Zero Trust overlays instead of exposing the device directly to the public internet. Install Tailscale with one click.

US-based support and a 12-month warranty

Get support from our US-based team and protect your deployment with an included 12-month advance replacement warranty.

Specifications

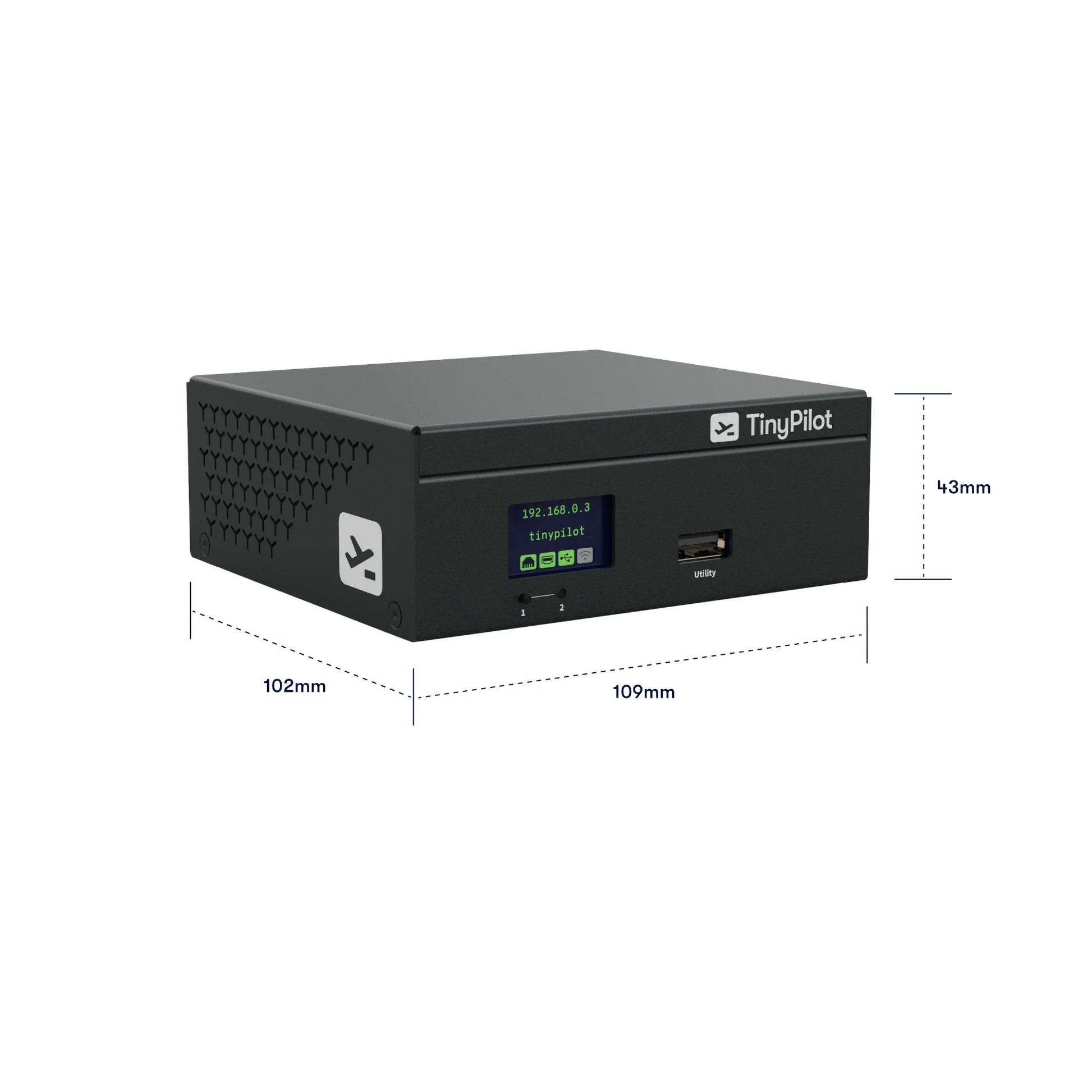

Dimensions 109mm x 102mm x 43mm
Processor Broadcom BCM2711, quad-core 1.5 GHz ARM CPU
Memory 2 GB RAM
Storage 32 GB industrial-grade storage
Power 5.1V 3A USB-C power adapter
PoE Active PoE IEEE 802.3af/at/bt (Plus version only)
Network Gigabit Ethernet

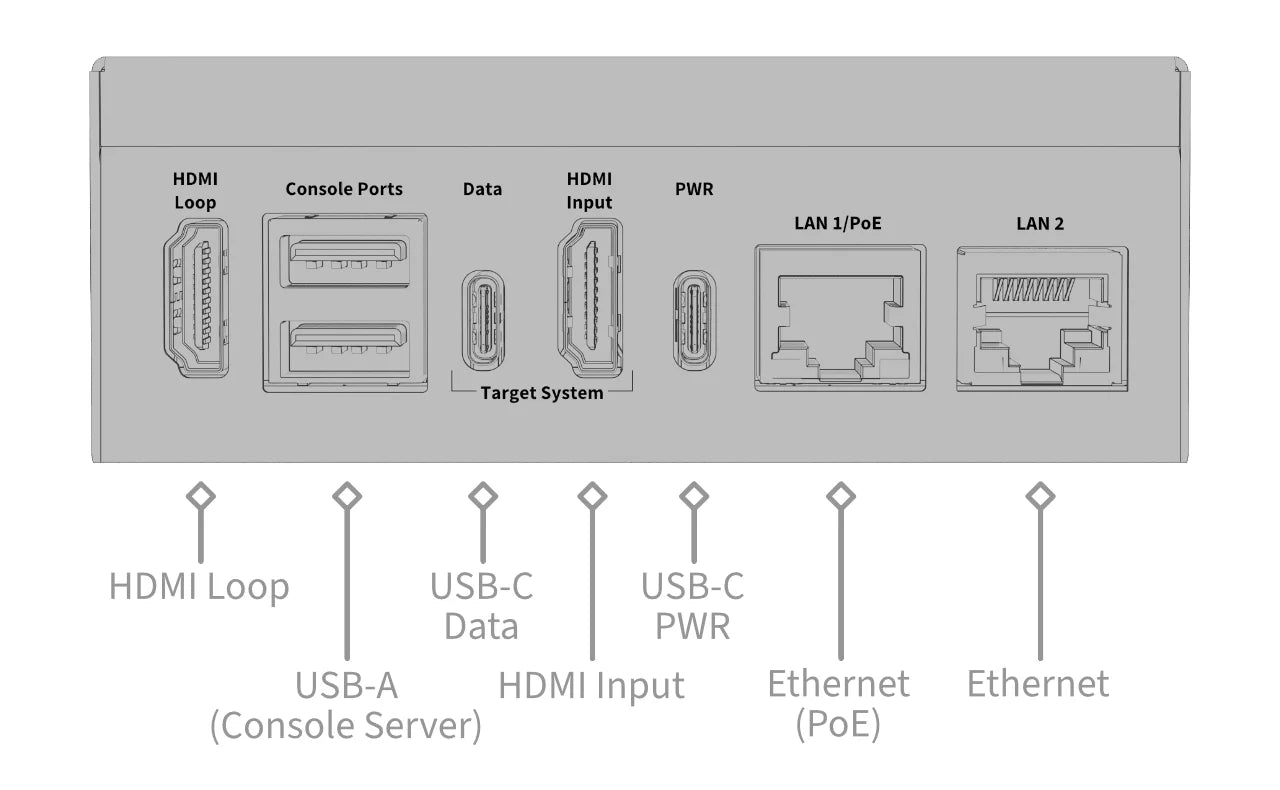

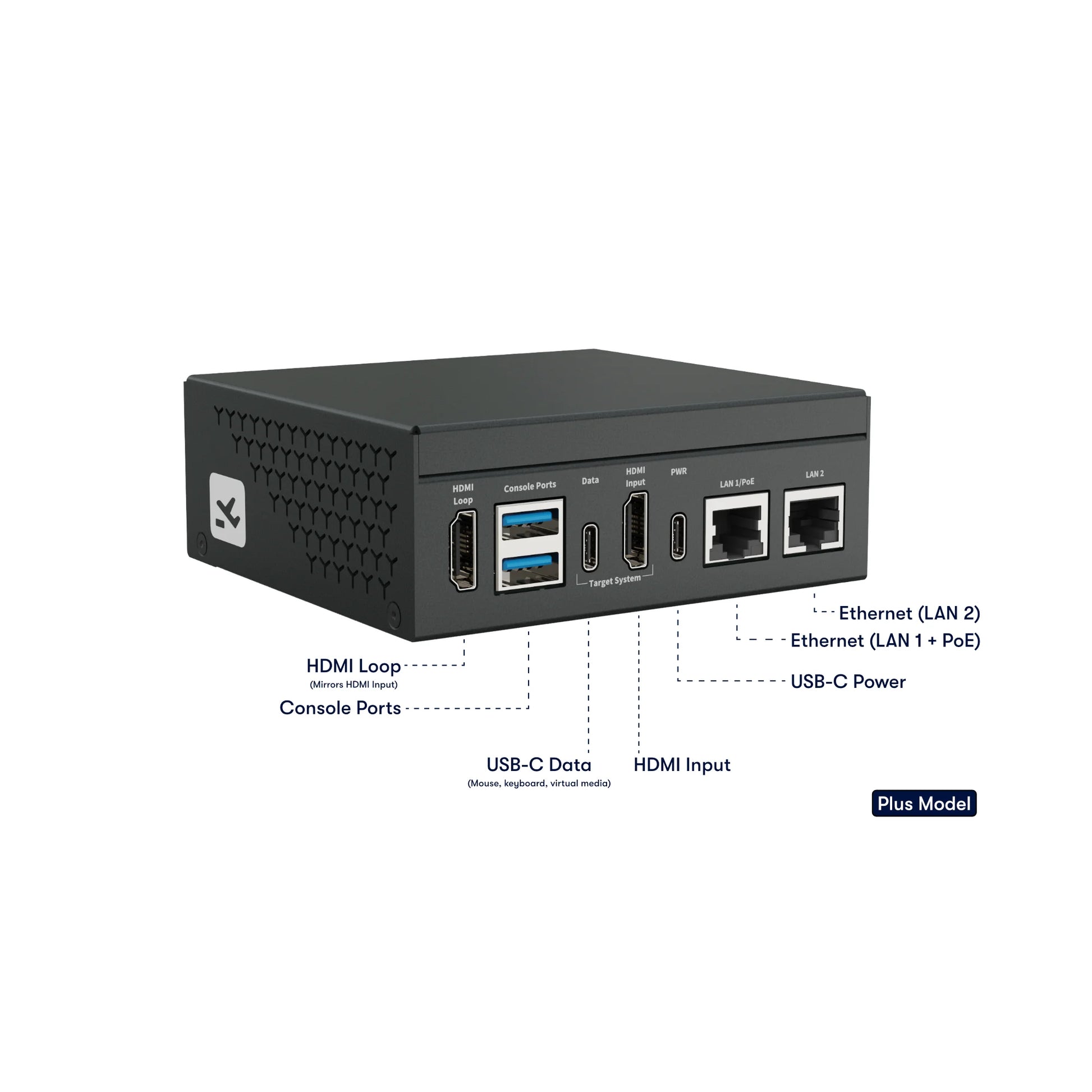

Second Ethernet port Available on Plus version only
Cooling Ultraquiet 5,000 RPM fan
Operating temperature -20°C to +85°C
Compliance FCC/CE compliant
Wireless 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless*
Interface Pure HTML5 interface with no client software required
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Video passthrough HDMI "loop" output provides video passthrough
User accounts Unlimited
Concurrent users Up to 8 simultaneous remote users without blocking local access
Connection security Secure TLS/HTTPS connection

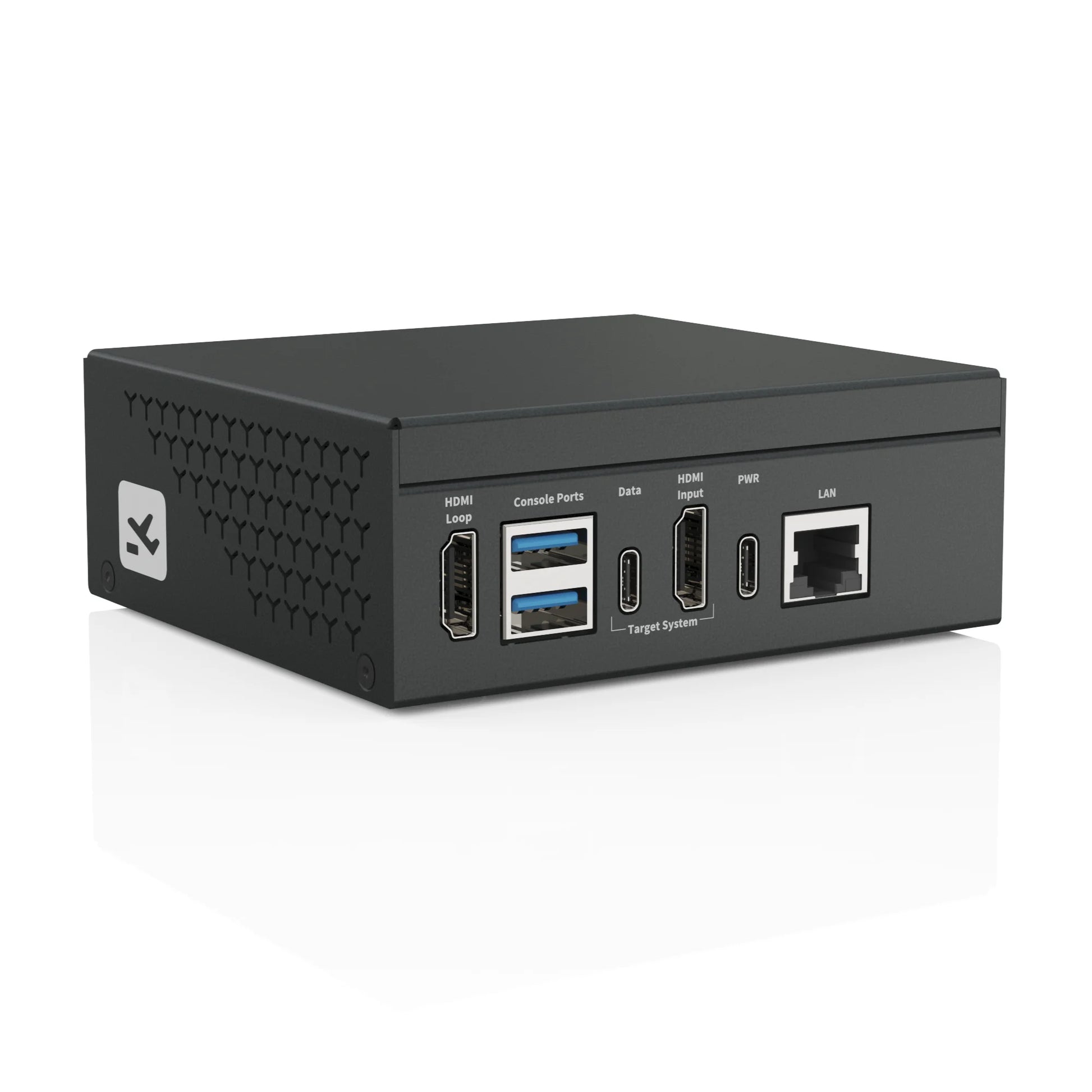

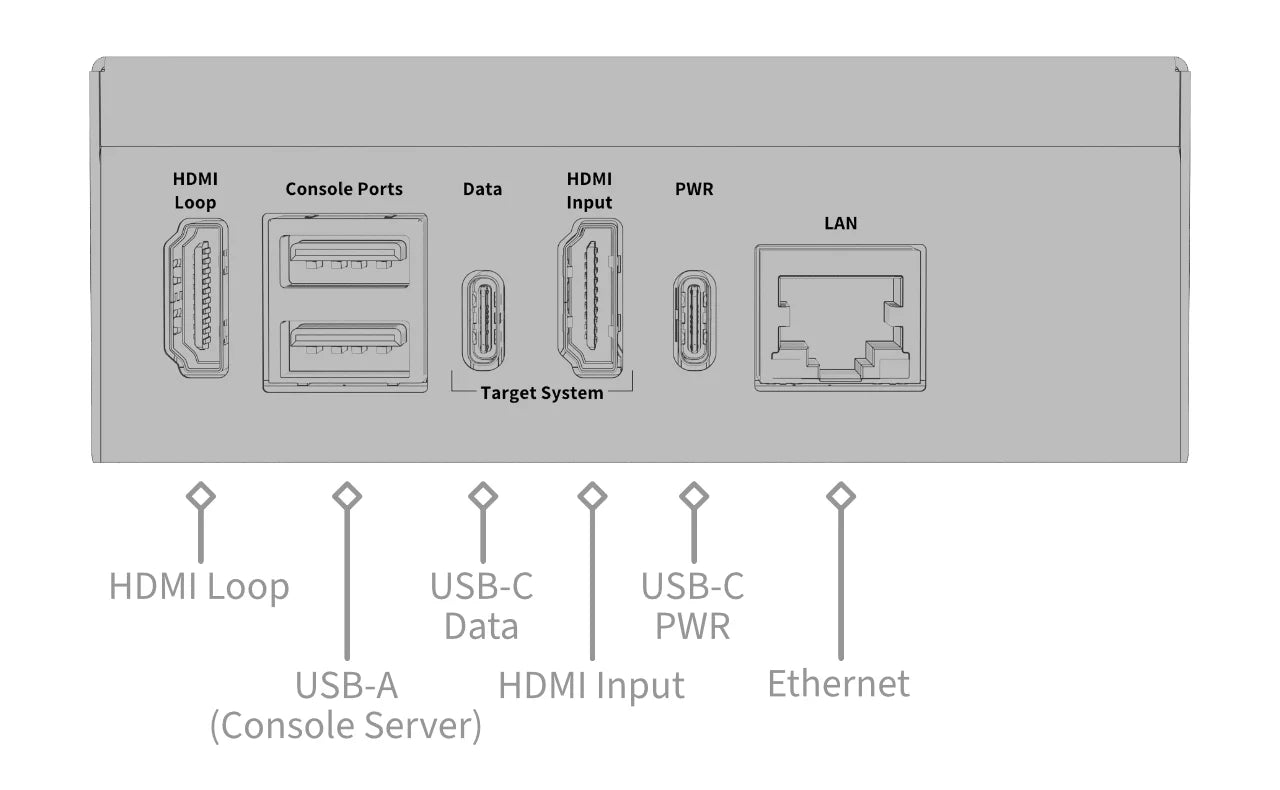

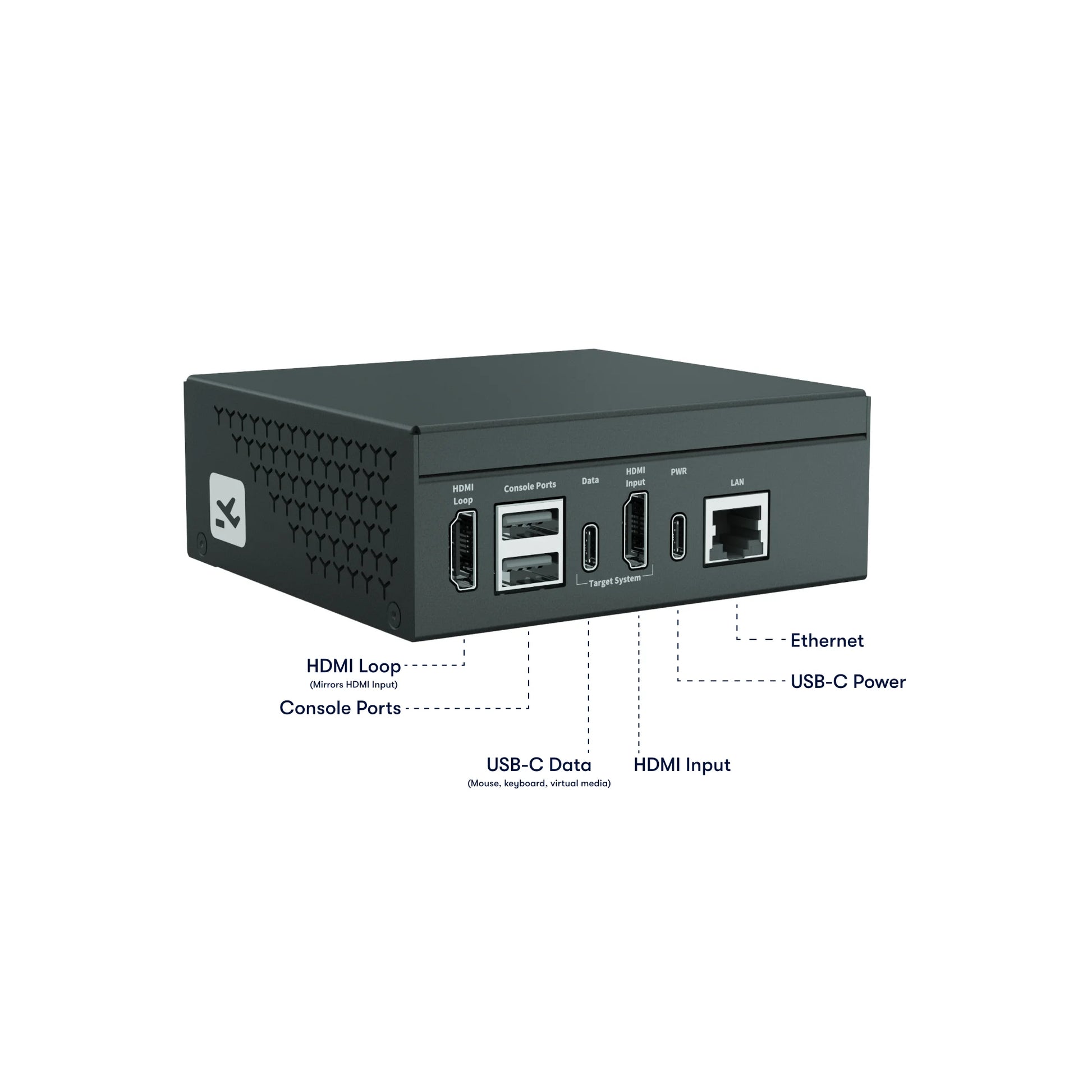

Console server 2 USB-A ports for USB-Serial cables

* Wi-Fi is not recommended as a primary connection method.

Requirements
USB connection A USB-A port on your server
Video connection An HDMI port on your server, or a suitable adapter
Network connection An Ethernet cable

In the box
TinyPilot device TinyPilot Voyager 3
USB cable 1.8m USB-C to USB-A cable
HDMI cable 1.8m HDMI cable
Power adapter 1.8m USB-C power adapter

  • Automation License

    Subscribe to the Automation License to automate workflows or to enable AI agents to control your target system.

  • Procurement-friendly purchasing

    Buy direct or through KVM Switches Online, CDW, SHI, Insight, DigiKey, or Amazon Business.

    European customers can purchase through Welectron.

  • Deployment guidance from our team

    Talk to our team to get help with choosing the right Voyager model for your deployment.
