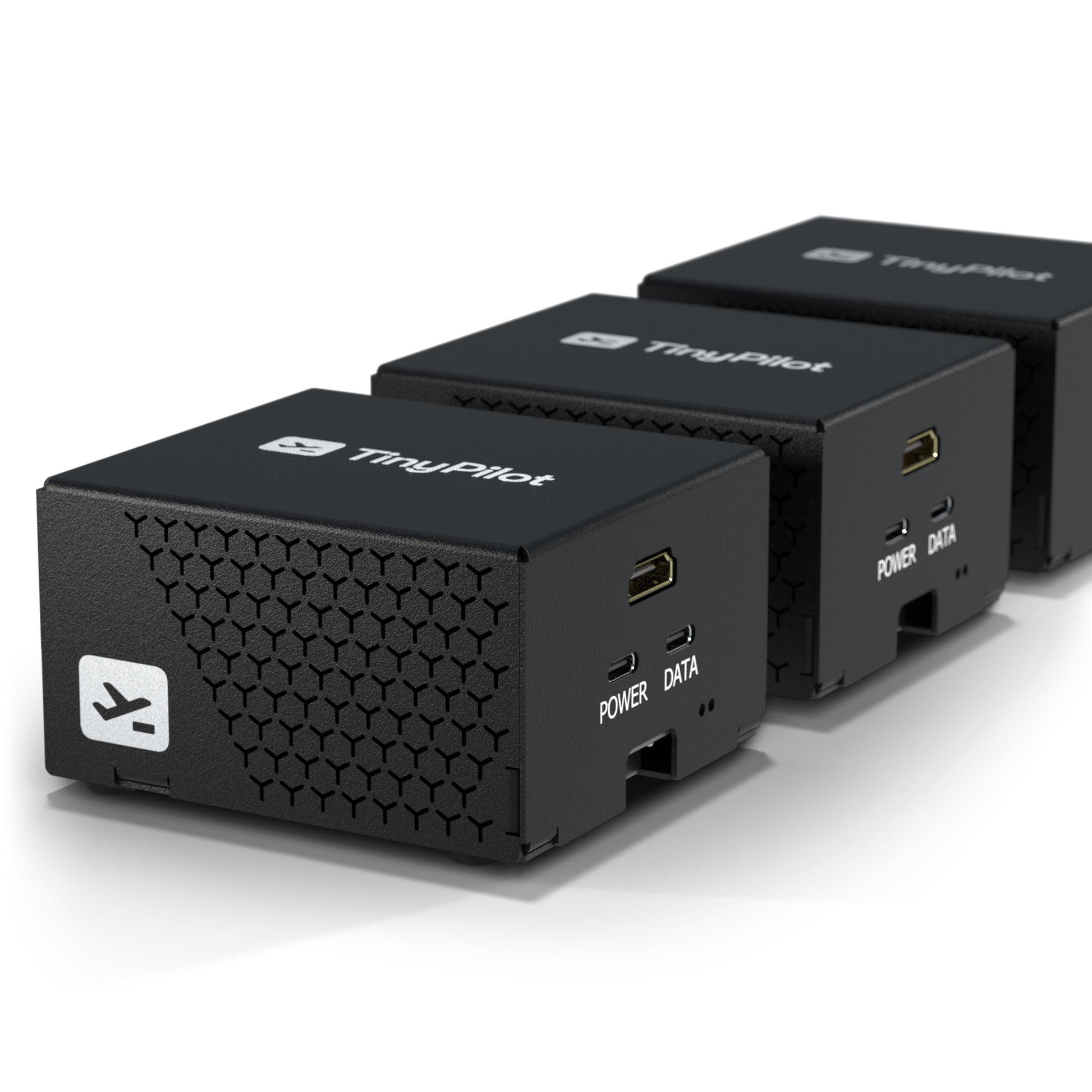

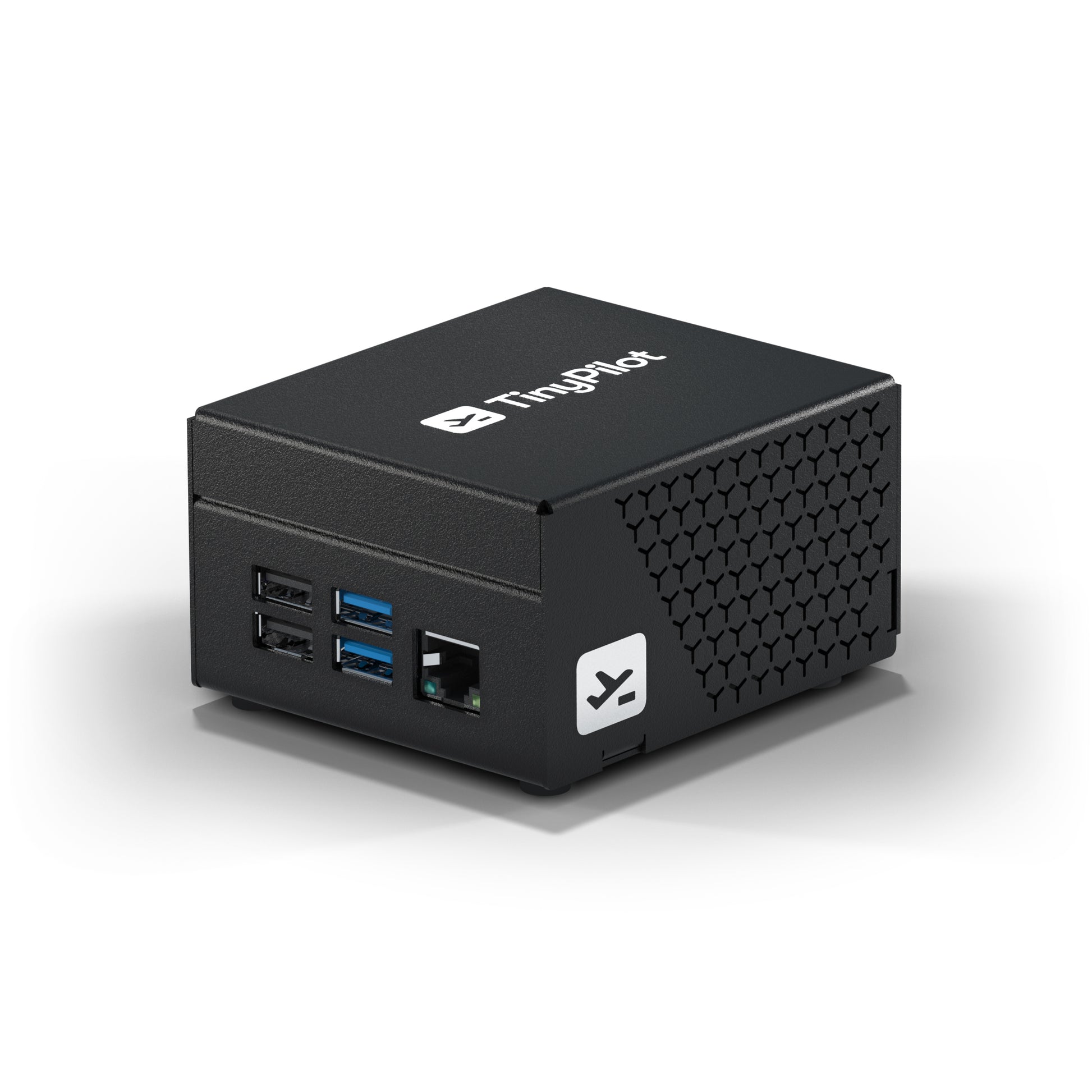

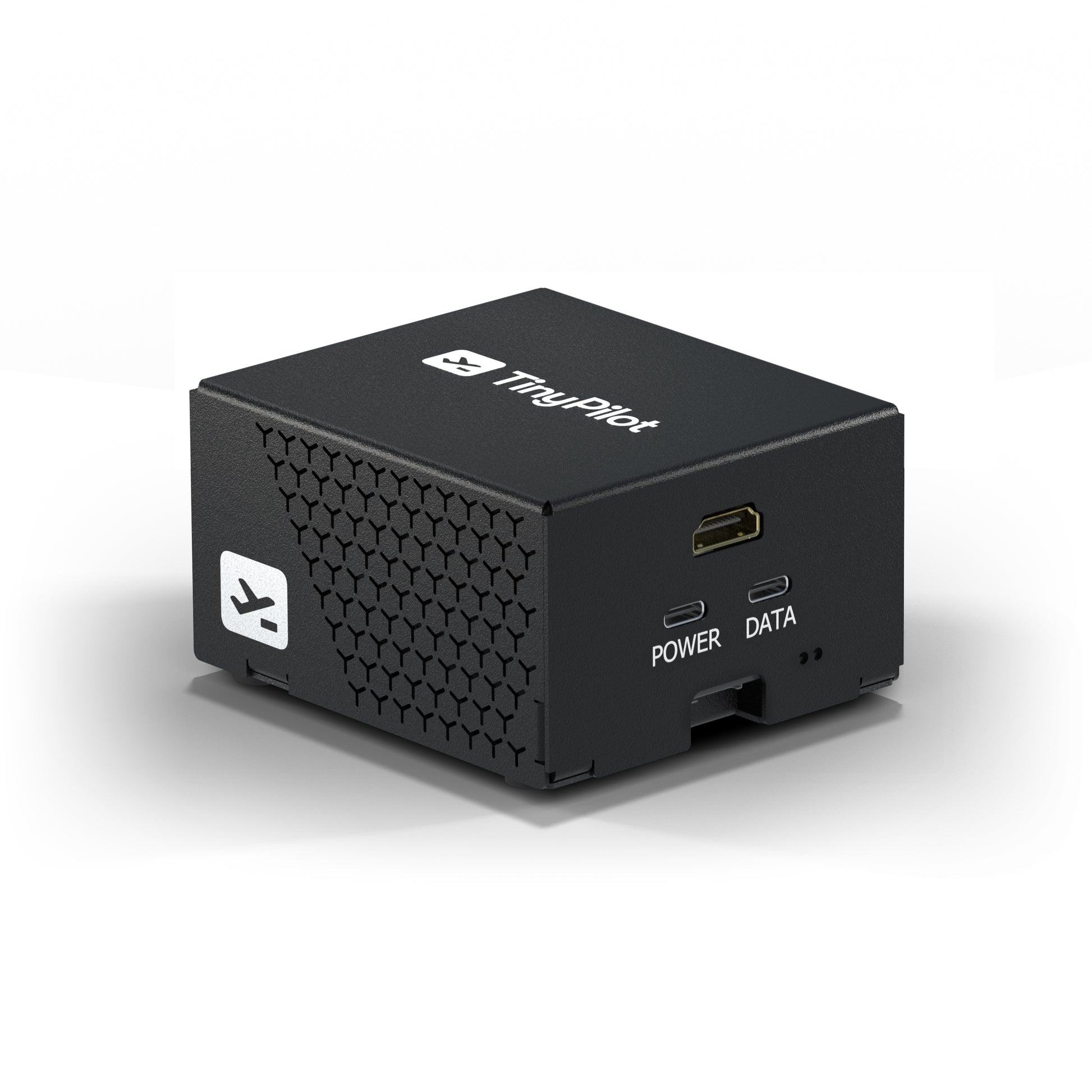

TinyPilot Voyager 3 KVM over IP & Console Server

TinyPilot Voyager 3 KVM over IP & Console Server

SKU:TPVOYG3STD

Model


$399

Shipping calculated at checkout.
  • Free shipping in US & Canada
  • 30-day returns
View full details

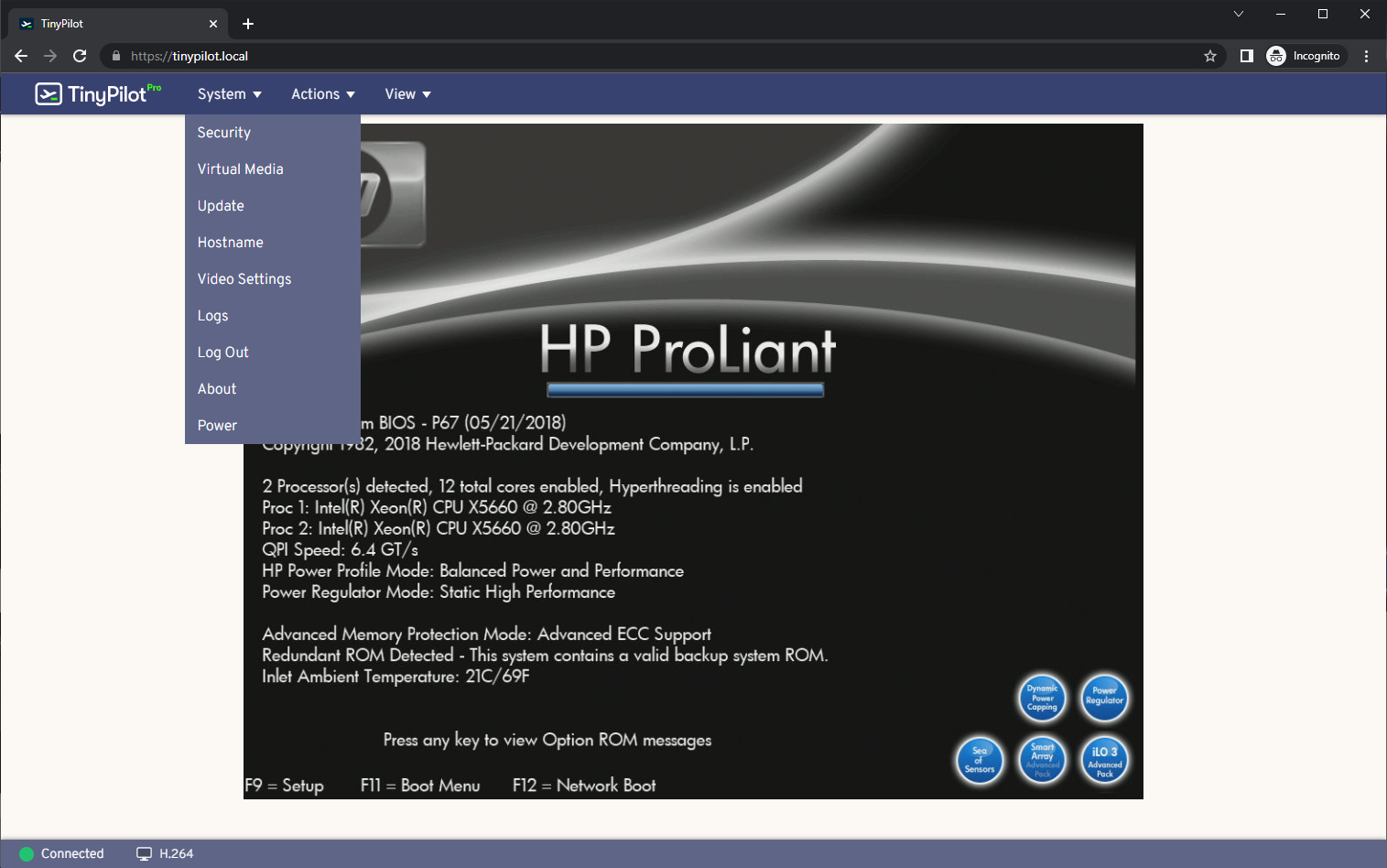

Reliable remote control from desktop to BIOS

Control a computer through a clear, stable browser-based KVM connection for everyday use, BIOS/UEFI access, and recovery when normal remote tools fail.

No software to install

Control the target system directly from your browser without installing software on the target or client software on the operator's computer.

KVM over IP + console server + LAN Monitor

Control a computer over HDMI and USB, access serial devices, and discover and monitor devices on the local network from one appliance. LAN Monitor is included with every Voyager 3.

Mount virtual media for installs and recovery

Mount installation media remotely to install operating systems, transfer files, and handle provisioning or recovery without sending someone onsite.

Secure remote access

Deploy TinyPilot on your LAN, over VPN, or through Zero Trust networks without exposing the device directly to the public internet. Enable user authentication and two-factor authentication, and install Tailscale with one click.

US-based support and a 12-month warranty

Get support from our US-based team and protect your deployment with an included 12-month advance replacement warranty.

Specifications
Dimensions 109mm x 102mm x 43mm
Processor Broadcom BCM2711, quad-core 1.5 GHz ARM CPU
Memory 1 GB / 2 GB* RAM
Storage 16 GB / 32 GB* industrial-grade storage
Power 5.1V 3A USB-C power adapter
PoE Active PoE IEEE 802.3af/at/bt*
Network Gigabit Ethernet
Second Ethernet port Available on Plus model only
Cooling Ultraquiet 5,000 RPM fan
Operating temperature -20°C to +85°C
Compliance FCC/CE compliant
Wireless 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless†
Interface Pure HTML5 interface with no client software required
Video capture 1920x1200 resolution at 60 frames per second (full list of supported resolutions)
Video passthrough HDMI "loop" output provides video passthrough
User accounts Unlimited
Concurrent users Up to 8 simultaneous remote users without blocking local access
Connection security Secure TLS/HTTPS connection
Console server 2 USB-A ports for USB-Serial cables

* Plus model only.

† Wi-Fi is not recommended as a primary connection method.

Requirements
USB connection A USB-A port on your server
Video connection An HDMI port on your server, or a suitable adapter
Network connection An Ethernet cable

In the box
TinyPilot device TinyPilot Voyager 3
USB cable 1.8m USB-C to USB-A cable
HDMI cable 1.8m HDMI cable
Power adapter 1.8m USB-C power adapter

  • Procurement-friendly purchasing

    Buy direct or through KVM Switches Online, CDW, SHI, Insight, DigiKey, or Amazon Business.

    European customers can purchase through Welectron.

  • Deployment guidance from our team

    Talk to our team to get help with choosing the right Voyager model for your deployment.

  • Automation License (optional add-on)

    Subscribe to the Automation License to automate workflows or to enable AI agents to control your target system.
